1. What is CorelDRAW?

CorelDRAW is a professional vector graphics and graphic designing software developed by Corel. It is widely used for creating logos, visiting cards, banners, brochures, posters, certificates, flex designs, advertisements, packaging designs and many other graphics.

CorelDRAW works mainly with vector graphics, which means designs can be enlarged or reduced without losing quality.

Common Uses of CorelDRAW

Logo designing
Visiting card designing
Pamphlet and brochure designing
Poster and banner designing
Flex and hoarding designing
Certificate designing
Letterhead designing
Invitation card designing
ID card designing
Sticker designing
T-shirt and merchandise designs
Packaging and label designs
Social media graphics

2. Vector Graphics vs Raster Graphics

Vector Graphics

Vector graphics are created using lines, curves, shapes and mathematical paths.

Examples:
CorelDRAW, Adobe Illustrator, Inkscape

Advantages

Can be resized without losing quality
Suitable for logos and printing
Objects can be edited individually
File size can be relatively small for simple artwork

Raster Graphics

Raster images are made from pixels.

Examples: JPG, PNG, BMP, TIFF

Advantages

Excellent for photographs
Supports detailed color information
Suitable for photo editing

Difference

Vector	Raster
Made from paths/shapes	Made from pixels
Can scale without quality loss	May become pixelated
Best for logos/designs	Best for photographs
CorelDRAW	Photoshop

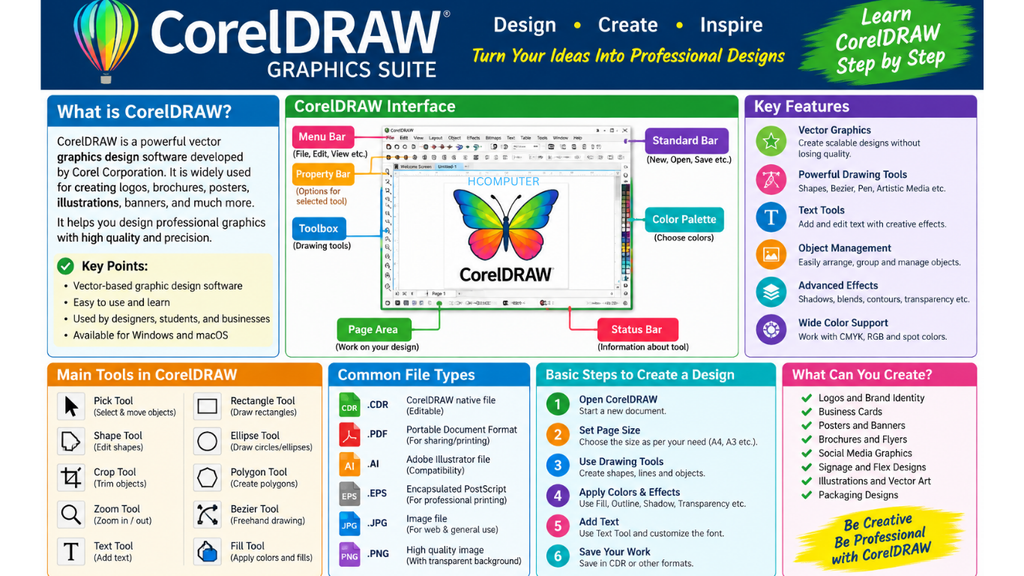

3. CorelDRAW Interface

When CorelDRAW is opened, several important areas are visible.

Main Parts

Title Bar – Displays the document/application name.
Menu Bar – Contains commands such as File, Edit, View, Layout, Object, Effects, Bitmaps, Text, Table, Tools, Window and Help.
Standard/Quick Access Toolbar – Provides frequently used commands.
Property Bar – Displays options related to the selected tool or object.
Toolbox – Contains drawing and editing tools.
Drawing Page – Main area where artwork is created.
Rulers – Help measure and position objects.
Color Palette – Used to apply colors.
Status Bar – Shows information about selected objects and document properties.
Docker/Panels – Provide additional settings and controls.
Scroll Bars – Used to move around the document.
Zoom Controls – Used to zoom in and out.

4. Creating a New Document

To create a new design:

File → New

You can specify:

Page size
Page orientation
Units
Color mode
Resolution-related settings where applicable
Number of pages

Common Page Sizes

A4 – 210 × 297 mm
A3 – 297 × 420 mm
A5 – 148 × 210 mm
Letter – 8.5 × 11 inches

For printing work, always select the required page size before designing.

5. Pick Tool

The Pick Tool is one of the most important tools in CorelDRAW.

It is used to:

Select objects
Move objects
Resize objects
Rotate objects
Skew objects
Transform objects

Selecting an Object

Click the object using the Pick Tool.

Selecting Multiple Objects

Hold Shift and click additional objects.

Selecting Objects with a Selection Box

Drag around the objects you want to select.

6. Shape Tool

The Shape Tool is used to modify the shape of objects and edit nodes.

It is especially important when working with:

Curves
Custom shapes
Rounded corners
Node editing

Nodes

Nodes are points that control the shape of a curve or object.

You can:

Add nodes
Delete nodes
Move nodes
Convert nodes
Join nodes
Break curves

7. Rectangle Tool

The Rectangle Tool is used to create rectangular and square shapes.

Creating a Rectangle

Select Rectangle Tool.
Click and drag on the page.
Release the mouse.

Creating a Square

Hold Ctrl while drawing.

Rectangles are commonly used for:

Visiting cards
Backgrounds
Buttons
Labels
Certificates
Frames

8. Ellipse Tool

The Ellipse Tool creates circles and oval shapes.

Creating a Circle

Hold Ctrl while dragging.

Uses

Logos
Buttons
Badges
Icons
Decorative elements
Infographics

9. Polygon Tool

The Polygon Tool creates multi-sided shapes.

Examples:

Triangle
Pentagon
Hexagon
Octagon
Star-like shapes

The number of sides can be adjusted using the relevant property controls.

10. Star Tool

The Star Tool is used to create stars and decorative shapes.

It can be used for:

Badges
Awards
Festival designs
Certificates
Promotional graphics

11. Freehand Tool

The Freehand Tool allows you to draw lines and curves manually using the mouse or drawing device.

It is useful for:

Sketching
Signatures
Custom lines
Illustrations

12. Bezier Tool

The Bezier Tool is very important for professional CorelDRAW designing.

It allows you to create:

Straight lines
Curved paths
Custom shapes
Logos
Illustrations

You create a path by clicking points and controlling curves.

13. Pen Tool

The Pen Tool is used to create precise curves and paths.

It is useful for:

Logo tracing
Custom illustrations
Smooth curves
Vector artwork

14. Text Tool

The Text Tool is used to add text to a design.

There are two major types of text:

Artistic Text

Used for short text such as:

Headings
Logos
Titles
Names

Paragraph Text

Used for larger amounts of text such as:

Articles
Brochures
Notices
Information pages

15. Text Formatting

You can modify:

Font
Font size
Bold
Italic
Underline
Alignment
Character spacing
Line spacing
Text color

Common Font Categories

Serif
Sans Serif
Decorative
Script

For professional designs, choose fonts according to the purpose and maintain readability.

16. Coloring Objects

CorelDRAW provides several ways to apply color.

Fill Color

Click a color from the color palette to apply a fill.

Outline Color

Right-click a color to apply it to the outline in many standard workflows.

You can also modify:

Outline width
Outline style
Fill type
Transparency

17. Fill Types

CorelDRAW supports different types of fills, including:

Uniform Fill

A single solid color.

Fountain/Gradient Fill

A gradual transition between colors.

Pattern Fill

Uses a pattern to fill an object.

Texture Fill

Creates textured appearances.

PostScript Fill

Provides specialized pattern effects.

18. Outline

An outline is the border around an object.

You can change:

Outline color
Width
Style
Corners
Line endings

Outlines are useful for:

Borders
Logos
Illustrations
Decorative designs

19. Eyedropper Tool

The Eyedropper Tool is used to sample colors or properties from an existing object.

For example, if a design contains a particular blue color, you can sample that color and use it elsewhere.

20. Smart Fill Tool

The Smart Fill Tool can create a new object from enclosed areas.

It is useful when:

Shapes overlap
You need to create custom regions
You want to quickly fill enclosed areas

21. Crop Tool

The Crop Tool is used to remove unwanted portions of objects or images.

It is particularly useful when working with imported photographs.

22. Zoom Tool

The Zoom Tool allows you to magnify or reduce your view of the document.

Zoom In

Increase the view size.

Zoom Out

Decrease the view size.

Remember: Zooming changes your view, not the actual size of the artwork.

23. Group and Ungroup

Group

Grouping combines multiple objects into one selection.

Shortcut: Ctrl + G

Example:

A logo may contain:

Text
Circle
Symbol
Decorative elements

You can group them so they move together.

Ungroup

Shortcut: Ctrl + U

It separates grouped objects.

24. Lock and Unlock Objects

Locking an object prevents accidental movement or editing.

Useful for:

Backgrounds
Guides
Fixed design elements
Templates

25. Align and Distribute

Alignment helps position objects accurately.

Common alignments include:

Left
Center
Right
Top
Middle
Bottom

Distribution helps maintain equal spacing between multiple objects.

Example

If you create 5 buttons, you can distribute them evenly instead of manually positioning each one.

26. Object Order

Objects can be placed in different stacking positions.

Common commands include:

To Front
To Back
Forward One
Back One

This is important when multiple objects overlap.

27. Duplicate Objects

To create a copy of an object, you can use:

Ctrl + D

Duplicating is useful for:

Repeated shapes
Patterns
Multiple cards
Icons
Product labels

28. Transformations

Objects can be transformed in several ways.

Move

Change the object’s position.

Scale

Increase or decrease its size.

Rotate

Turn an object around a rotation point.

Mirror

Create a flipped version of an object.

Skew

Slant an object horizontally or vertically.

29. Weld

Weld combines two or more overlapping objects into one shape.

Example

Two circles can be welded together to create a custom shape.

30. Trim

Trim removes portions of an object based on overlapping objects.

Example:

A circle overlapping a rectangle can be used to cut part of the rectangle.

31. Intersect

Intersect creates a new object from the area where two objects overlap.

It is extremely useful for creating custom shapes.

32. Combine and Break Apart

Combine

Combines selected objects/curves into a single object or curve structure where appropriate.

Break Apart

Separates a combined object into individual components where applicable.

These commands are commonly used during logo and vector editing.

33. PowerClip

PowerClip is one of the most useful CorelDRAW features.

It allows you to place one object inside another object.

Example

You have a photograph and a circle.

You can place the photograph inside the circle to create a circular photo.

Common Uses

Photo frames
Product advertisements
Creative posters
Social media designs
Brochures

34. Transparency

Transparency makes an object partially see-through.

It can be applied to:

Shapes
Images
Text
Background elements

It is useful for creating:

Overlays
Shadows
Modern backgrounds
Watermarks

35. Shadow Effects

Shadow effects can give designs depth.

They can be used for:

Text
Buttons
Logos
Product images
Promotional graphics

Avoid excessive shadows because they can make designs look cluttered.

36. Contour

The Contour effect creates additional shapes around or inside an object.

It is commonly used for:

Logos
Badges
Decorative text
Sticker designs

37. Blend

The Blend effect creates intermediate objects between two objects.

It can create interesting:

Patterns
Decorative effects
Illustrations
Repeated shapes

38. Extrude

Extrude can create a three-dimensional appearance.

It is useful for:

3D text
Logos
Promotional graphics

39. Perspective

Perspective effects create the appearance of depth.

For example, text can be made to look like it is moving into the distance.

40. Working with Images

CorelDRAW can import raster images such as:

JPG
PNG
TIFF
BMP

Importing an Image

Use:

File → Import

Then select the required image.

Images can be:

Resized
Cropped
Rotated
PowerClipped
Adjusted
Traced

41. Bitmap and Vector

Bitmap

A bitmap consists of pixels.

Examples:

JPG
PNG
TIFF

Vector

Vector graphics consist of paths and objects.

Examples:

42. PowerTRACE

PowerTRACE is used to convert suitable bitmap images into vector artwork.

For example:

JPG Logo → PowerTRACE → Editable Vector Artwork

It is especially useful for tracing:

Simple logos
Line drawings
Icons
Illustrations

The quality of tracing depends heavily on the original image.

43. Layers and Object Management

Layers help organize complicated designs.

For example, a poster can contain:

Layer 1: Background
Layer 2: Images
Layer 3: Shapes
Layer 4: Text
Layer 5: Logo

Good organization makes editing easier.

44. Rulers and Guidelines

Rulers help measure object positions.

Guidelines help with accurate placement and alignment.

They are especially useful for:

Visiting cards
Certificates
Brochures
ID cards
Printing layouts

45. Page Layout

Before designing for print, consider:

Page size
Orientation
Margins
Bleed requirements
Color mode
Resolution of imported images
Final output format

46. RGB and CMYK

RGB

RGB stands for:

Red + Green + Blue

It is primarily used for digital screens.

Examples:

Websites
Social media
Digital presentations

CMYK

CMYK stands for:

Cyan + Magenta + Yellow + Key/Black

It is commonly used for printing.

Examples:

Visiting cards
Brochures
Posters
Pamphlets
Flyers

For professional printing, always confirm the printer’s required color settings and output specifications.

47. Printing

Before printing, check:

Page size
Orientation
Margins
Text
Images
Colors
Bleed
Fonts
Resolution
Number of copies

Always review the final design before sending it to print.

48. Exporting Files

CorelDRAW designs can be exported into various formats depending on the purpose.

Common formats include:

CDR
PDF
JPG/JPEG
PNG
SVG
EPS
TIFF

For Printing

PDF is commonly used, but the exact PDF settings should match the printer’s requirements.

For Web

PNG/JPG/SVG may be appropriate depending on the artwork.

49. Important CorelDRAW Shortcuts

Shortcut	Function
Ctrl + N	New document
Ctrl + O	Open
Ctrl + S	Save
Ctrl + Shift + S	Save As
Ctrl + P	Print
Ctrl + Z	Undo
Ctrl + Shift + Z	Redo
Ctrl + X	Cut
Ctrl + C	Copy
Ctrl + V	Paste
Ctrl + D	Duplicate
Ctrl + G	Group
Ctrl + U	Ungroup
Delete	Delete selected object
Ctrl + A	Select all
Ctrl + F	Find/related commands depending on version/context
Ctrl + Q	Convert object to curves
Ctrl + K	Break apart
Ctrl + L	Combine
Ctrl + R	Repeat last operation in applicable contexts
F4	Zoom to all objects
F5	Freehand tool
F6	Rectangle tool
F7	Ellipse tool
F8	Text tool
F10	Shape tool
Spacebar	Switch temporarily to Pick Tool in many workflows

Note: Shortcuts can vary by CorelDRAW version, workspace, operating system, and customization.

50. Professional Design Principles

Learning tools alone is not enough. Good graphic design also requires understanding design principles.

1. Alignment

Keep objects properly aligned.

2. Contrast

Use differences in size, color, weight, or shape to create emphasis.

3. Balance

Distribute visual elements properly.

4. Hierarchy

Make the most important information visually prominent.

5. Proximity

Keep related information together.

6. Consistency

Use consistent fonts, colors, spacing, and styles.

7. White Space

Do not fill every empty area. Empty space can improve readability.

51. Visiting Card Design – Practical Project

A beginner can create a professional visiting card using:

Front Side

Company logo
Person’s name
Designation
Phone number
Email
Website
Address

Back Side

Services
Social media
QR code
Short tagline

Suggested Workflow

Page Setup → Background → Logo → Text → Icons → Alignment → Colors → Final Check → Export PDF

52. Poster Design – Practical Project

A poster generally contains:

Main heading
Supporting heading
Image/illustration
Important information
Contact details
Call-to-action
Logo/branding

Example

ADMISSION OPEN

Computer Courses

Basic Computer
MS Office
Tally
CorelDRAW
Web Designing

Contact Us Today

This is an excellent beginner project for practicing CorelDRAW.

53. Logo Designing – Practical Project

Steps

Understand the brand.
Sketch ideas.
Create basic shapes.
Use Bezier/Pen tools where required.
Apply suitable colors.
Add typography.
Align objects.
Convert suitable text to curves for final artwork.
Create black-and-white versions.
Export required formats.

Important Rule

A good logo should be:

Simple
Memorable
Scalable
Appropriate
Readable
Original

54. CorelDRAW Beginner-to-Advanced Course Structure

Level 1 – Basic

Introduction to CorelDRAW
Interface
New document
Page setup
Selection
Shapes
Fill and outline
Basic text
Save and export

Level 2 – Intermediate

Node editing
Bezier/Pen
Align and distribute
Group/ungroup
Weld
Trim
Intersect
PowerClip
Transparency
Effects
Image handling

Level 3 – Advanced

Logo design
Vector illustration
Professional typography
Packaging design
Brochure design
Print preparation
Color management
Bitmap tracing
Advanced effects
Multi-page projects
Professional export

55. Practice Projects

For a complete CorelDRAW course, practice these projects in order:

Basic shapes
Name design
Color combination exercise
Simple logo
Visiting card
Letterhead
Certificate
ID card
Invitation card
Poster
Pamphlet
Brochure
Product label
Social media post
Advertisement banner
Flex banner
Restaurant menu
School/coaching advertisement
Business logo
Complete branding package
